Kidde WHDR™ Wet Chemical Suppression System for Commercial Cooking Applications

The heart and soul of every dining establishment is the kitchen. Equipped with ranges, broilers, fryers and a myriad of other high-temperature cooking appliances, no other environment demands proper fire protection more than today’s modern cooking facilities.

The Kidde Fire Systems WHDR™ system is specifically designed for the challenging demands posed by cooking applications. By offering one of the most flexible system configurations in the industry, Kidde Fire Systems provides efficient, economical protection for all types of cooking facilities and design layouts. Our customized approach allows you to specify the type of detection, control and cylinder sizes to fit your application.

Investing in a Kidde Fire Systems WHDR system helps to enable more than just code compliance for your appliance (UL300, NFPA 96 & 17A); it provides automatic, round the clock protection from the devastating consequences of fire.

Why Choose the WHDR System?

Economical.

Cost-effective, pre-engineered system simplifies design and installation.

Easy-to-maintain.

Semi-annual system inspections and routine maintenance per NFPA regulations are performed quickly and efficiently by your local Kidde Fire Systems distributor.

Proven Protection.

Providing the best in kitchen fire protection for over 40 years, the Kidde Fire Systems WHDR System is the choice of countless restaurants and cooking facilities worldwide.

24/7 Support.

Designed, installed and serviced by our factory trained, global network of Kidde Fire Systems distributors.

Customized Solution.

System design and installation provided by your local distributor, delivering a superior code-compliant solution which is tailored to your fire protection needs.

Robust Design.

Meets strict UL 300 fire test criteria, suppressing fire without the need for secondary agent or system connections.

Reliable.

Every WHDR system is backed by the Kidde Fire Systems warranty.

How Do WHDR Wet Chemical Systems Work?

Fire is detected by the Kidde Fire Systems mechanical link, or electric Detect-A-Fire® (DAF), or the system is manually activated by a remote pull station.
The XV™ Control System simultaneously actuates up to 20 pressurized agent storage containers, shuts down fuel and power sources to the appliances and activates the building fire alarm.
The Kidde Fire Systems APC wet chemical agent, designed specifically for the challenges posed by oil and grease in a kitchen environment, is propelled through the system piping by the stored pressure container.
The Kidde Fire Systems APC agent discharges from strategically positioned nozzles protecting the hood, duct and appliances. APC agent quickly suppresses the flames and forms a protective layer that not only extinguishes the fire, but also prevents re-ignition.

System Description:

The Kidde Wet Chemical System consists of a supply of wet chemical stored in one or more Cylinder and Valve Assemblies. Each cylinder is pressure activated by a System Valve Actuator.

The system can be actuated either automatically and/or manually, using mechanical, electrical, or pressure actuation devices. Upon actuation, the wet chemical is discharged through agent distribution piping and specially designed nozzles positioned throughout the protected area.

Cylinder Weight and Agent Fill Information:

Cylinder and Valve Assembly Specifications:

Mounting Bracket Dimensions:

Kidde WHDR™ Agent Discharge Nozzles:

There are seven agent discharge nozzles available for use with the Kidde WHDR Wet Chemical Suppression System. Each nozzle has a specific flow number which is an indication of the discharge rate. Nozzle types are selected based upon the specific hazard being protected (see Table 1). All nozzles have a 3/8-in. NPT female thread and are stamped with the nozzle type.

All nozzles include a threaded cap with a replaceable foil seal.The foil seal prevents contamination, while eliminating the potential for hanging caps.

Kidde WHDR™ System Other Components:

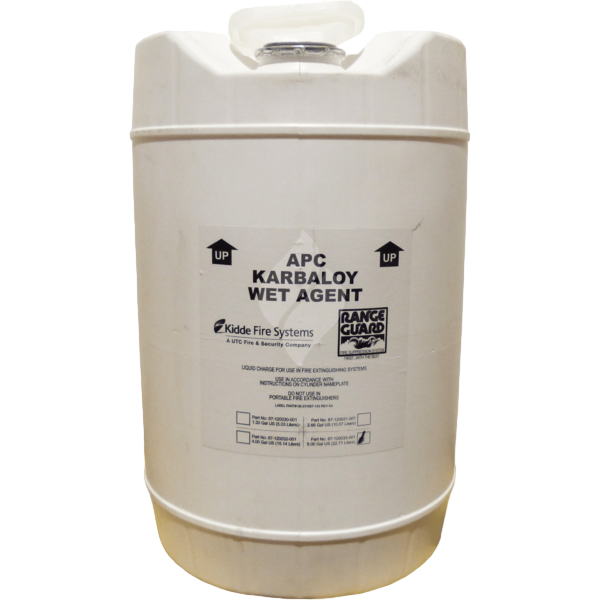

APC Wet Chemical Agent

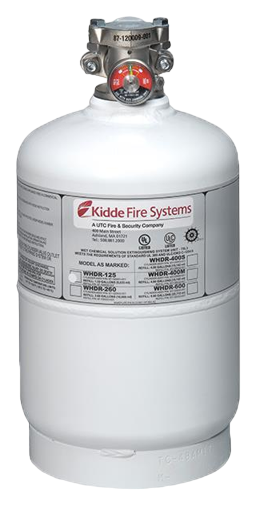

Kidde Agent Cylinders

Valve System Actuator (SVA)

System Control Box Kit

EMT Coner Pulley

Cylinder Discharge Adpater

KIDDE® WHDR™ WET CHEMICAL SYSTEM FOR FOOD TRUCK COOKING OPERATIONS

Driven by increasing consumer demand for unique and affordable food options, from outdoor events to the daily lunch break, Food Trucks have become a veritable

phenomenon in recent years. This proliferation of food trucks has resulted in a rise of fire related incidents, leading to a tightening of regulatory oversight & the need to meet stringent safety requirements.

As with any cooking operation, the combination of fuel (grease & oils), heat (cooking appliances), and a ready ignition source (open flames) demands a proper fire

solution for continued safe operation.

The Kidde WHDR fire suppression system offers the product design flexibility to maximize system performance in a limited space, and ensures regulatory compliance for your food truck.

The UL 300 listed Kidde WHDR system uses a highly effective, non-toxic wet chemical agent that quickly suppresses fire, minimizes equipment damage and protects your business against the devastating consequences of fire.
